Fowler 54-125-777-0 0-22″ X-Depth 22-E Electronic Depth Gauge

Description

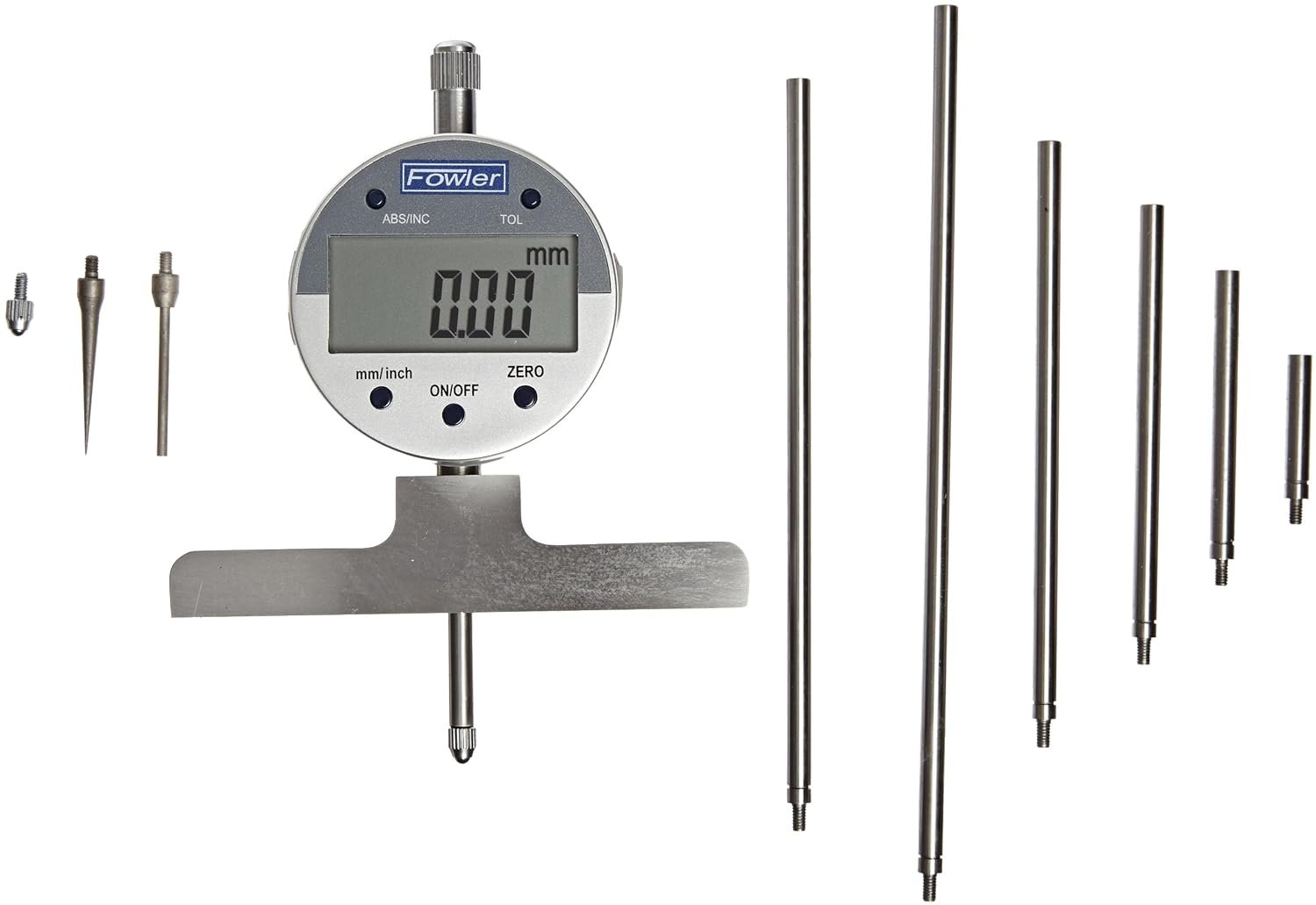

The Fowler 54-125-777 Electronic Depth Gauge gage has a measurement range of 0 to 22″, and a resolution (or smallest graduation interval) of 0.0005″, with +/- .001/.03mm accuracy. The LCD screen displays in U.S./metric. This depth gauge includes six rods that connect together for the 22″ range and two extra points for small holes, one 0.078 inch diameter x 1″ long and one needle point x 1″ long. The gauge has an On/Off button and a zero reset that can be used at any position. The base is 4″ long and has been ground, hardened, and lapped for durability and accurate measurements. The gauges conform to Federal Accuracy specifications. The shipping weight of the gauge is 0.9 lb. and it comes with a hardened plastic case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering. . This product has 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.What’s in the Box?· Fowler 54-125-777 depth gauge· (6) Measuring rods· (2) Points for small holes (one 0.078″ diameter x 1″ long and one needle point x 1″ long)· Hardened case· Instructions· 1 extra ball contact point

Features

• 1 year warranty offered by Fowler High Precision, an American company

• Measurement range of 0 to 22″, and resolution of 0.0005″

• LCD screen displays in U.S/metric

• Includes six rods that connect together for the 22″ range and two extra points for small holes, one 0.078″diameter x 1″ long and one needle point x 1″ long

• On/Off button and a zero reset at any position, ground, hardened, and lapped base for durability and accuracy

Specifications

Package Dimensions : 11.4 x 4.8 x 1.4 inches; 0.71 Ounces

Item model number : 54-125-777-0

Batteries : 2 Lithium Metal batteries required.

Date First Available : November 9, 2004

Manufacturer : Fred V. Fowler Company, Inc.

ASIN : B001C7P7IK

Domestic Shipping : Item can be shipped within U.S.

International Shipping : This item can be shipped to select countries outside of the U.S. Learn More

Best Sellers Rank : #226,478 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #90 in Depth Gauges

Customer Reviews : 4.1 out of 5 stars 6 ratings

Brand Name : Fowler

Ean : 0646795136267

Global Trade Identification Number : 00646795136267

Item Weight : 0.705 ounces

Maximum Measurement : 22″

Measurement Accuracy : 1 GRAD

Model Number : 54-125-777-0

Number of Items : 1

Part Number : 54-125-777-0

Range : 22″

Resolution : 0-22″ Measuring Range

Specification Met :

UNSPSC Code : 41112401

UPC : 646795136267
